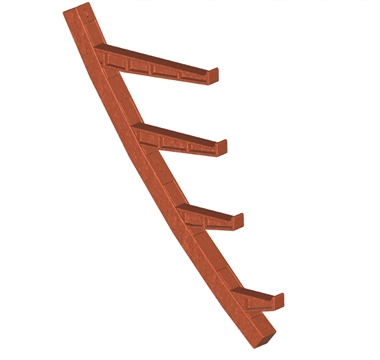

Phenolic cable rack is made by curing under high temperature and pressure with preformed phenoic molding compounds. This product has advantages of high flame retardant ,light weight,high strength,corrosion resistance ,aging resistance and excellent electric insulation.

Technical properties and specifications:

1.Combustion performance meets the requirement of GB8624-2006 Level A2, classification for burning behavior of building material and products.
2.The relative deflection value of each bracket arm s lower than L/150 and the safety coefficient is greater than 5 under normal operating condition.
3.The flexural strength is higher than 220Mpa.
4.The impact strength is higher than 150kJ/m2
5.The insulation resistance is higher than 1.0×1012Ω.
6.The service life is more than 35 years.
